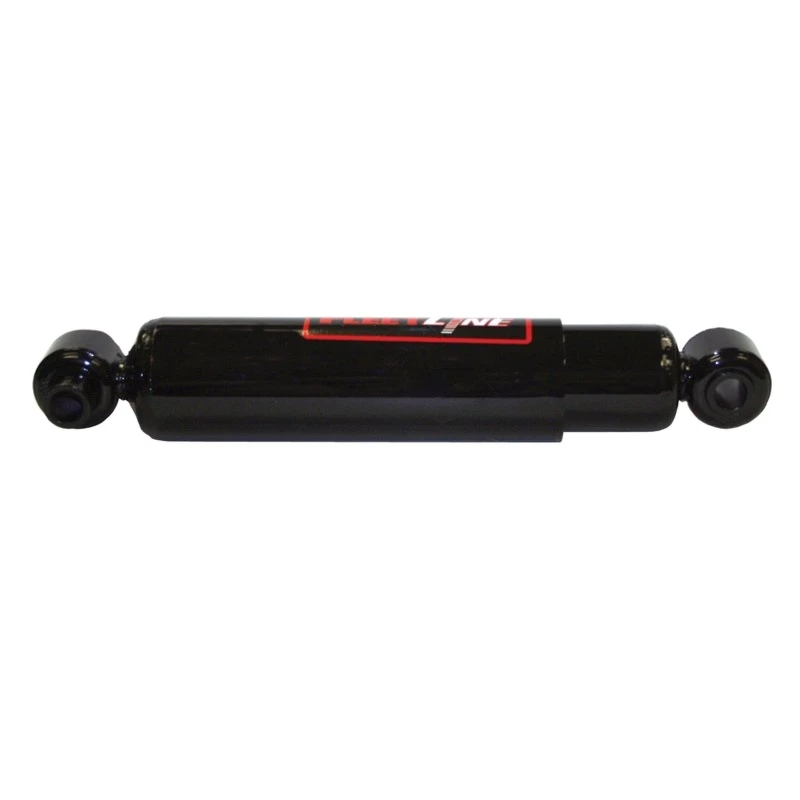

Shock Absorber Gabriel - 85084

Name: Shock Absorber Gabriel - 85084
Brand: Gabriel

Part number 85084

Gabriel 85084 shock absorber with a 1-5/8 in bore and ES174 upper and ES136 lower mounting codes.

Confirm the exact application and configuration before selecting this part. Reference numbers and similar configurations do not guarantee interchange.

Specifications

Part number	85084
Brand	Gabriel
Department	Suspension
Part type	Shocks
Upper mounting code	ES174
Lower mounting code	ES136
Bore	1-5/8 in
External diameter code	C
Extended length	20.59 in
Collapsed length	13.03 in
Stroke	7.57 in
Dust tube	YES
Recoil cutoff	NO
Rebound damping force	1145 lb
Compression damping force	407 lb

Need a measurement or technical specification? Ask our parts team before choosing the part.

Cross References

Brand	Part number
Alliance	ABP N32 G900094
Bull Dog	HD1215-0048
CargoMaxx	441 - 85084
CLV Warehouse INC	MON-65175
FCS	F347249
GasSLX	89460
Gold	9180187
Groupo A	USA58073
Kenworth	B71-6004
Kenworth	B71-6005
Kenworth	B71-6006
Kenworth	B716004
Kenworth	B716005
Kenworth	B716006
Monroe	65175
Monroe	65175M0R

Part type: Shocks
Department: Suspension
