WebbHome / Catalog / Suspension / Shocks
Gabriel
Part number 85070
Cross references: Alliance ABP N32 G900021Alliance ABP N32 O900021Kenworth 665858Kenworth 665858-2 · see all 41

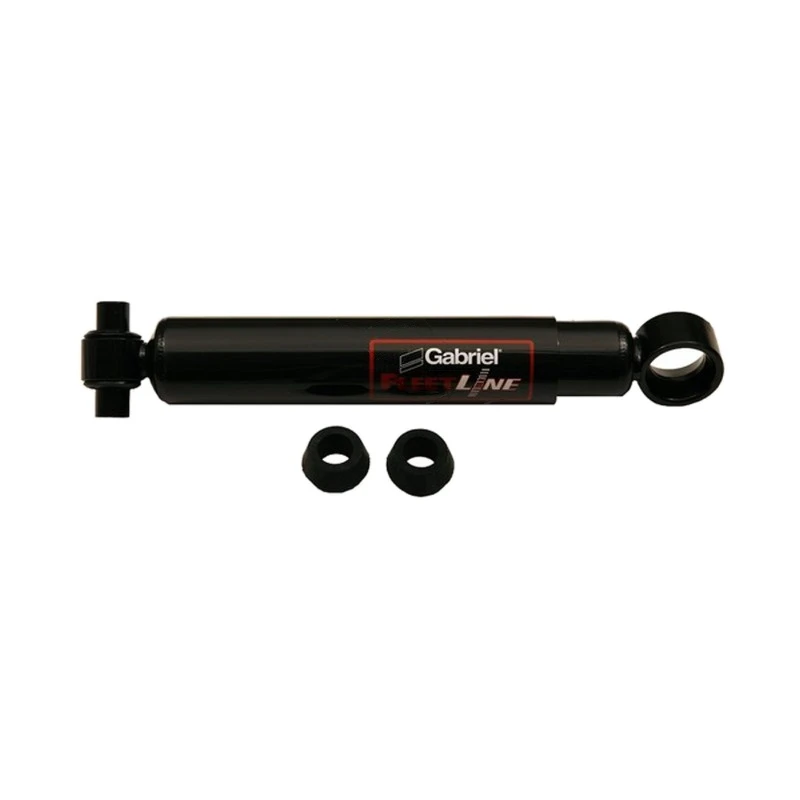

Gabriel 85070 shock absorber with a 1-5/8 in bore and ES174 upper and EB3 lower mounting codes.
Confirm the exact application and configuration before selecting this part. Reference numbers and similar configurations do not guarantee interchange.
| Part number | 85070 |
|---|---|
| Brand | Gabriel |
| Department | Suspension |
| Part type | Shocks |
| Upper mounting code | ES174 |
| Lower mounting code | EB3 |
| Bore | 1-5/8 in |
| External diameter code | C |
| Extended length | 25.59 in |
| Collapsed length | 15.83 in |
| Stroke | 9.76 in |
| Dust tube | YES |
| Recoil cutoff | NO |
| Rebound damping force | 1100 lb |
| Compression damping force | 310 lb |
Need a measurement or technical specification? Ask our parts team before choosing the part.
| Brand | Part number |
|---|---|
| Alliance | ABP N32 G900021 |
| Alliance | ABP N32 O900021 |
| Bull Dog | HD1215-0020 |
| CargoMaxx | 441 - 85070 |
| FCS | F347233 |
| GasSLX | 89459 |
| Gold | 9160190 |
| Gold | 9180151 |
| Groupo A | 58064 |
| Kenworth | 665858 |
| Kenworth | 665858-2 |
| Kenworth | 6658582 |
| Kenworth | 671052 |
| Kenworth | 671052-2 |
| Kenworth | 6710522 |
| Kenworth | B71-1001 |
Online ordering is coming soon. Contact our team about this part; listings do not confirm stock.
Contact us to confirm current availability and shipping options for this part.
More Shocks
| Kenworth |
|---|
| B711001 |
| Marathon | 58064-MB |
|---|
| Meritor | M85070 |
|---|
| Monroe | 65159 |
|---|
| Monroe | 65159M0R |
|---|
| Monroe | 65159MM |
|---|
| Monroe | AMS65159 |
|---|
| Peterbilt | 665858 |
|---|
| Peterbilt | 665858-2 |
|---|
| Peterbilt | 6658582 |
|---|
| Peterbilt | 671052 |
|---|
| Peterbilt | 671052-2 |
|---|
| Peterbilt | 6710522 |
|---|
| Peterbilt | B71-1001 |
|---|
| Peterbilt | B711001 |
|---|
| ProPar | PROSH85070 |
|---|
| PRT (ADD) | 925125 |
|---|
| Sachs | 315548 |
|---|
| Sachs | 315654 |
|---|
| TRP | HS 85070 |
|---|
| Truckmaster | 671052 |
|---|
| Volvo | 83176228 |
|---|
| Volvo | RC SA5070 |
|---|
| Volvo | SA5070 |
|---|
| Volvo RoadChoice | SA5070 |
|---|
Reference numbers alone do not guarantee fit. Confirm the exact application.
