WebbHome / Catalog / Lighting / Headlights
Automann
Part number 564.96021

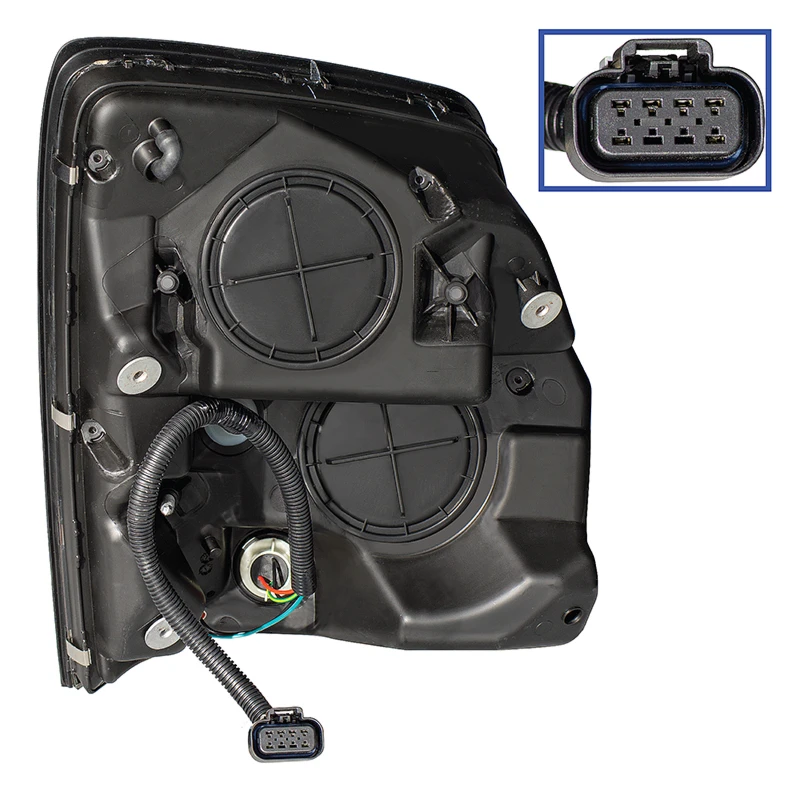

Automann describes 564.96021 as an RH headlamp for Volvo VNL Gen2, 2004+, using H11 low beam, HB3/9005 high beam, a 3157NA amber turn-signal bulb and a 194 marker bulb. Selected fields specify incandescent technology and 12V. Uses is not expanded into a guarantee that every named bulb is supplied; the held generic vehicle/year fields do not broaden the Gen2 description.
Confirm the exact application and configuration before selecting this part. Reference numbers and similar configurations do not guarantee interchange.
| Part number / SKU | 564.96021 |
|---|---|
| Brand | Automann |
| Department | Lighting |
| Part type | Headlights |
| Product Level | Fleet StandardConditions / detailsOwn exact-product printed field |
| Unit Size | 1Conditions / detailsOwn exact-product printed field |
| Weight | 8.95 lbsConditions / detailsOwn exact-product printed field |
| Package dimensions | 29 X 17.5 X 14.5 inConditions / detailsShipping package dimensions, not physical part dimensions |
| UPC Code | 889626206979Conditions / detailsOwn exact-product printed field |
| Lighting Technology | IncandescentConditions / detailsOwn exact-product attribute; unit only as printed |
| Hardwired (Y/N) | NoConditions / detailsOwn exact-product attribute; unit only as printed |
| Connection Type | HarnessConditions / detailsOwn exact-product attribute; unit only as printed |
| Kit (Y/N) | NoConditions / detailsOwn exact-product attribute; unit only as printed |
| Voltage Range | 12VConditions / detailsOwn exact-product attribute; unit only as printed |
| Position | RHConditions / detailsOwn exact-product attribute; unit only as printed |
| Turn Signal Bulb | 3157NA AmberConditions / detailsOwn exact-product attribute; unit only as printed |
| Lens Material | PolycarbonateConditions / detailsOwn exact-product attribute; unit only as printed |
| Low Beam Bulb | H11Conditions / detailsOwn exact-product attribute; unit only as printed |
| High Beam Bulb | HB3/9005Conditions / detailsOwn exact-product attribute; unit only as printed |
| Compliance | FMVSS-108, CMVSS-108, SAE, DOTConditions / detailsOwn exact-product attribute; unit only as printed |
| Marker / Marker Bulb | 194Conditions / detailsOwn exact-product attribute; unit only as printed |
| Manufacturer description | RH headlamp for Volvo VNL Gen 2, 2004+; H11 low beam, HB3/9005 high beam, 3157NA amber turn signal and 194 marker light bulbs.Conditions / detailsPreserve all printed application and installation qualifiers |
Need a measurement or technical specification? Ask our parts team before choosing the part.
No verified cross-references listed yet.
Have another part number? Ask us to check it.Fitment has not been verified for this listing.
Compare the number on your existing part. If you’re unsure, our parts team can help check the match before you order.
These are distinct configurations, not an automatic interchange or fitment guarantee.
| Part number | Configuration | Difference |
|---|---|---|
| 564.96020 | Automann 564.96020 | 564.96021 is explicitly RH;564.96020 is explicitly LH. These are the separately sourced opposite-side Volvo VNL Gen2 headlamp configurations, each incandescent12V with harness connection. Choose the required side, not a same-position replacement.Selection conditionsOpposite-side configuration relationship only: each own Specifications Position and Description independently states RH or LH, and each explicitly captured Related Items table directly names the other exact SKU. Select the required side; the opposite side is not a substitute for the same mounting position. Both owning sources explicitly restrict these incandescent 12V harness-connected assemblies to Volvo VNL Gen 2, with Model Years2004+ wording. Generation2 remains mandatory:2004+ does not mean every later VNL generation. Stock titles say2004-2017; no endpoint correction or expansion of current-stock coverage is made. Both own sources say Uses H11 low beam and HB3/9005 high beam bulbs. Their own Product Overview explicitly says includes3157NA amber turn signal and194 marker bulbs. Do not turn Uses into inclusion of H11/HB3, claim all four bulb types included, or treat KitNo as proof no bulbs are supplied. Only RH/LH position is the distinguishing configuration asserted here. Each own source lists Polycarbonate lens; no new housing color/chrome, projector, LED, beam pattern, brightness, dimensions, connector pinout or aiming/installation procedure is inferred from related cards, matching carton dimensions or appearance. Verify exact generation, side, vehicle mounting/harness and bulb requirements before selecting. Do not broaden the LH VT(Model Not Listed) Series row or any old source/year hold into fitment. Related bumper covers, access caps and projector/chrome articles are separate roles; table membership does not prove included accessories or transitive interchange. Existing Compliance labels and marketing performance prose are retained only in full raw context, not independently certified or transferred. Each assembly is separately listed with UnitSize1; the linked opposite side is not proved to be a bundled pair. No original claim or hold is superseded; independent and human approval remain required. |
No verified documents are listed for this part yet. Saved research PDFs remain drafts and are not attached here.
Ask for product documentationAutomann describes 564.96021 as an RH headlamp for Volvo VNL Gen2, 2004+, using H11 low beam, HB3/9005 high beam, a 3157NA amber turn-signal bulb and a 194 marker bulb. Selected fields specify incandescent technology and 12V. Uses is not expanded into a guarantee that every named bulb is supplied; the held generic vehicle/year fields do not broaden the Gen2 description.
Preserve all printed application and installation qualifiers
Own exact-product attribute; unit only as printed
Related headlamp recommendations require counterpart application checks before configuration variant approval.
Research evidence only; no public or human approval.
Generation2 and exact required side remain mandatory; no all-future-VNL or same-position interchange.
Old VT/other source holds remain; independent source review and human approval required.
Independent content review and explicit human approval remain required before public attachment.
Private source-bound description candidate only; independent prose review and explicit root registration required. Saved catalog assertions do not confirm current supplied stock, physical contents, installed fitment or public/human approval.
Left (LH)564.96020
Right (RH)This partOnline ordering is coming soon. Contact our team about this part; listings do not confirm stock.
Contact us to confirm current availability and shipping options for this part.
More Headlights




Confirm the application, dimensions and installation requirements with our parts team before selecting a different configuration.
