WebbHome / Catalog / Steering / King Pin Kits
Automann

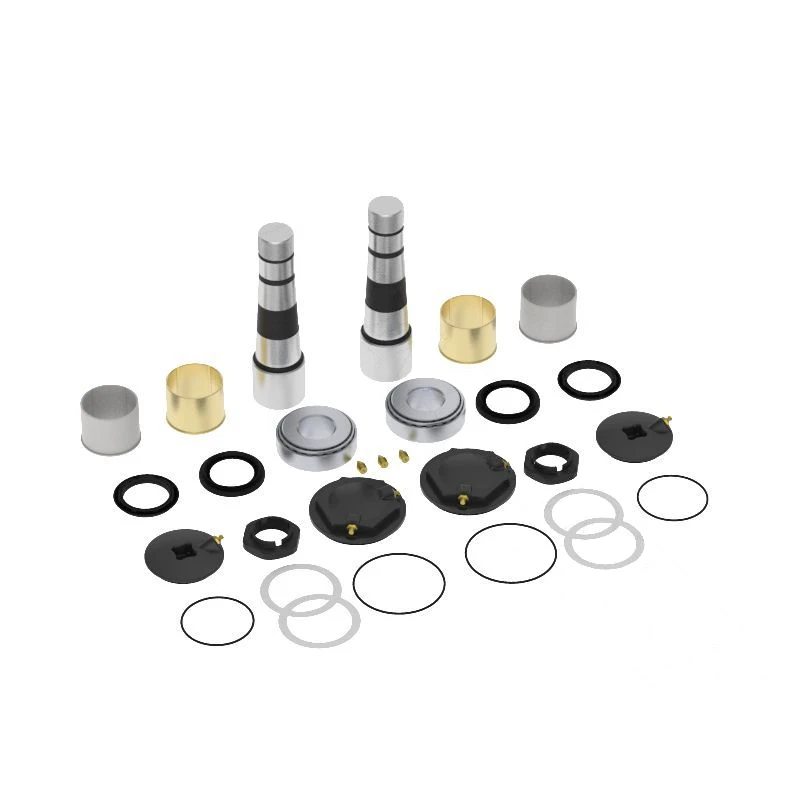

Part number 460.542N
Automann lists 460.542N as a bronze-and-nylon-bushing kingpin kit with a 2.360-inch O.D. and 8.920-inch length, restricted to the source’s Mack FXL12, FXL14.6, FXL18, FXL20 and FXL23M axles, and Volvo FM9/FM12 scope. The source warns that bushings may need slight reaming; its torque wording is retained as source context, not independently verified installation advice.
Confirm the exact application and configuration before selecting this part. Reference numbers and similar configurations do not guarantee interchange.
| Part number / SKU | 460.542N |
|---|---|
| Brand | Automann |
| Department | Steering |
| Part type | King Pin Kits |
| Type | TTConditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Bushing Type | Bronze & NylonConditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| OD | 2.360"Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Length | 8.920"Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Thrust Bearing | 460.542N3Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Bushing | 460.542N2P, 460.542N2BConditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N1 | King Pin for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N2P | King Pin Bushing Nylon for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N3 | King Pin Bearing for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N4 | Upper Seal for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N5 | Lower Seal for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N6 | Mack Steering Knuckle Cap for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N7 | Mack Steering Knuckle Cap for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N8 | King Pin Nut for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N9 | Shim & Gasket Kit for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
| Source Includes component 460.542N2B | King Pin Bushing Bronze for 460.542N; catalog quantity 2Conditions / detailsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
Need a measurement or technical specification? Ask our parts team before choosing the part.
| Brand / reference type | Part number | Notes |
|---|---|---|
| Meritor | R201338 | manufacturer-listed-competitive-reference. Reference conditionsSource manufacturer lists this exact Automann number after punctuation-only comparison. This is a directed reference, not verified pairwise interchange with the other competitors, and not permission to transfer specifications. |
| Mack | 20590487 | manufacturer-listed-competitive-reference. Reference conditionsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. Directed association only;no reverse/transitive interchange,package equality,counterpart-property transfer or OEM certification. |
| Mack | 301SQ53 | manufacturer-listed-competitive-reference. Reference conditionsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. Directed association only;no reverse/transitive interchange,package equality,counterpart-property transfer or OEM certification. |
These source-qualified listings are not a fitment guarantee. Confirm the engine, OE number, installed equipment, mounting/configuration and VIN before selecting a part. Missing years or models have not been verified.
| Make | Model | Years |
|---|---|---|
| Not stated | Source axle/model association only: FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12. Confirm exact axle/own kit configuration;not all Mack/Volvo or VNL Series years,installed compatibility or alternative interchange. Exact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. Original source conditionsSource axle/model association only: FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12. Confirm exact axle/own kit configuration;not all Mack/Volvo or VNL Series years,installed compatibility or alternative interchange. Exact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. |
These are distinct configurations, not an automatic interchange or fitment guarantee.
| Part number | Configuration | Difference |
|---|---|---|
| 460.542NP | Automann 460.542NP | 460.542N lists Bronze & Nylon bushings; its Includes table has ten component rows,each catalog quantity 2. 460.542NP lists Nylon bushings and Remarks Premium Version 460.542N; no counted component table was captured.Selection conditionsManufacturer-listed Alternative Items configuration relationship: both exact published articles have complete owning captures and directly list one another. These are source construction/package-role differences,not unrestricted installed interchange,an upgrade instruction or permission to change bushing construction. Each own article separately lists Type TT,OD 2.360-inch and Length 8.920-inch. TT is unexpanded;equal labelled dimensions do not establish tolerances,mount/axle compatibility,complete geometry or interchangeable selection. Axle/model scope is FXL12,FXL14.6,FXL18,FXL20 and FXL23M Axles,Volvo FM9,FM12;broader VNL Series rows remain context only. N,NP and NPK each preserve their own Description torque wording and Bushings May Need to be Reamed Slightly warning below. This is archived source text,not independently verified installation guidance. N Remarks prints 563?689 rather than the Description en-dash;that corrupted field remains held. N-S has no independently captured torque/reaming instruction;do not transfer one from a family member. NPK title/Remarks caps wording is source-supported,but Description Includes 2 Nylon Bushing Only leaves actual complete package/counts unresolved. Neither statement is discarded or treated as proof the other is false. No cap quantity or exclusion of other pieces inferred. N has ten explicit Includes rows each qty2;NP,NPK,N-S empty component arrays establish neither inclusion nor exclusion and inherit no N BOM. N-S is a short kit and Use with460.542N9 Kit if Needed is a conditional source relation,not proof of included/excluded shim kit or equivalence to a full kit. Premium is a catalog distinction,not superior performance. N,NP and N-S own narratives mention non-sealed thrust/end caps where included;those statements remain source-specific and conditional,not NPK contents proof. No unprinted chemistry,load,OEM-form-fit or durability guarantee. |
No verified documents are listed for this part yet. Saved research PDFs remain drafts and are not attached here.
Ask for product documentationAutomann lists 460.542N as a bronze-and-nylon-bushing kingpin kit with a 2.360-inch O.D. and 8.920-inch length, restricted to the source’s Mack FXL12, FXL14.6, FXL18, FXL20 and FXL23M axles, and Volvo FM9/FM12 scope. The source warns that bushings may need slight reaming; its torque wording is retained as source context, not independently verified installation advice.
Exact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified.
Exact Automann product specifications, truck/engine/year applicability, configuration/installation requirements and public review remain outstanding.
Not yet reviewed; no Automann claim verified in this dossier.
Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded.
Saved source only;currentness,physical supplied configuration and installation unverified. Original claims and holds unchanged;independent review and explicit publication approval required.
No existing hold superseded or original claim revised. Exact physical package,installed axle/service suitability,currentness and public approval remain unresolved.
NPK complete contents and N torque-corrupt Remarks remain narrow source risks;NE own source not captured here.
Independent content review and explicit human approval remain required before public attachment.
Private source-bound description candidate only; independent prose review and explicit root registration required. Saved catalog assertions do not confirm current supplied stock, physical contents, installed fitment or public/human approval.
Online ordering is coming soon. Contact our team about this part; listings do not confirm stock.
Contact us to confirm current availability and shipping options for this part.
More King Pin Kits
| Stemco | K536M | manufacturer-listed-competitive-reference. Reference conditionsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. Directed association only;no reverse/transitive interchange,package equality,counterpart-property transfer or OEM certification. |
|---|
| Spicer | KPK1109 | manufacturer-listed-competitive-reference. Reference conditionsExact Automann own article;not genuine counterpart identity. Full source Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Full source Description (restrictions govern): MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Bronze&Nylon own kit;FXL12/14.6/18/20/23M,VolvoFM9/FM12 only. Full Description warning retained as source text,not installation advice;Remarks563?689 corruption held. Includes qty2 rows not target/full-kit interchange. VNL Series broader association held;end caps conditional;no OEM/life/load guarantee. TT unexpanded. Saved source only;currentness/physical package/installed fit unverified. Directed association only;no reverse/transitive interchange,package equality,counterpart-property transfer or OEM certification. |
|---|
Reference numbers alone do not guarantee fit. Confirm the exact application.
| Not stated |
Applications not listed here have not been verified.
Compare the number on your existing part. If you’re unsure, our parts team can help check the match before you order.
460.542NE is an Alternative Items card only in these captures. No own NE source/reaming/construction proof is adopted;no spiral/no-ream property transfers to these four articles. All prior source risks,stock/identity/package holds and claims remain unchanged. Exact supplied axle/kit configuration and service selection require review;no physical-package,installed-fit or publication approval.
Owner full Title: 460.542N - King Pin Kit Bronze-Nylon Bushings
Owner full Description: MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly
Target full Title: 460.542NP - King Pin Kit Premium Nylon Bushing
Target full Description: MACK wth FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.Bushings May Need to be Reamed Slightly
| 460.542NPK | Automann 460.542NPK | 460.542N lists Bronze & Nylon bushings; its Includes table has ten component rows,each catalog quantity 2. 460.542NPK lists Nylon bushings; title says w-Caps and Remarks says 460.542NP with premium knuckle caps. Description Includes 2 Nylon Bushing Only leaves complete contents unresolved.Selection conditionsManufacturer-listed Alternative Items configuration relationship: both exact published articles have complete owning captures and directly list one another. These are source construction/package-role differences,not unrestricted installed interchange,an upgrade instruction or permission to change bushing construction. Each own article separately lists Type TT,OD 2.360-inch and Length 8.920-inch. TT is unexpanded;equal labelled dimensions do not establish tolerances,mount/axle compatibility,complete geometry or interchangeable selection. Axle/model scope is FXL12,FXL14.6,FXL18,FXL20 and FXL23M Axles,Volvo FM9,FM12;broader VNL Series rows remain context only. N,NP and NPK each preserve their own Description torque wording and Bushings May Need to be Reamed Slightly warning below. This is archived source text,not independently verified installation guidance. N Remarks prints 563?689 rather than the Description en-dash;that corrupted field remains held. N-S has no independently captured torque/reaming instruction;do not transfer one from a family member. NPK title/Remarks caps wording is source-supported,but Description Includes 2 Nylon Bushing Only leaves actual complete package/counts unresolved. Neither statement is discarded or treated as proof the other is false. No cap quantity or exclusion of other pieces inferred. N has ten explicit Includes rows each qty2;NP,NPK,N-S empty component arrays establish neither inclusion nor exclusion and inherit no N BOM. N-S is a short kit and Use with460.542N9 Kit if Needed is a conditional source relation,not proof of included/excluded shim kit or equivalence to a full kit. Premium is a catalog distinction,not superior performance. N,NP and N-S own narratives mention non-sealed thrust/end caps where included;those statements remain source-specific and conditional,not NPK contents proof. No unprinted chemistry,load,OEM-form-fit or durability guarantee. 460.542NE is an Alternative Items card only in these captures. No own NE source/reaming/construction proof is adopted;no spiral/no-ream property transfers to these four articles. All prior source risks,stock/identity/package holds and claims remain unchanged. Exact supplied axle/kit configuration and service selection require review;no physical-package,installed-fit or publication approval. Owner full Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Owner full Description: MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Target full Title: 460.542NPK - King Pin Kit w-Caps Premium Nylon Bushng Target full Description: Includes 2 Nylon Bushing Only MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft. Bushings May Need to be Reamed Slightly |
|---|
| 460.542N-S | Automann 460.542N-S | 460.542N lists Bronze & Nylon bushings; its Includes table has ten component rows,each catalog quantity 2. 460.542N-S lists Nylon bushings and explicitly SHORT KIT OF 460.542N; Use with 460.542N9 Kit if Needed is conditional.Selection conditionsManufacturer-listed Alternative Items configuration relationship: both exact published articles have complete owning captures and directly list one another. These are source construction/package-role differences,not unrestricted installed interchange,an upgrade instruction or permission to change bushing construction. Each own article separately lists Type TT,OD 2.360-inch and Length 8.920-inch. TT is unexpanded;equal labelled dimensions do not establish tolerances,mount/axle compatibility,complete geometry or interchangeable selection. Axle/model scope is FXL12,FXL14.6,FXL18,FXL20 and FXL23M Axles,Volvo FM9,FM12;broader VNL Series rows remain context only. N,NP and NPK each preserve their own Description torque wording and Bushings May Need to be Reamed Slightly warning below. This is archived source text,not independently verified installation guidance. N Remarks prints 563?689 rather than the Description en-dash;that corrupted field remains held. N-S has no independently captured torque/reaming instruction;do not transfer one from a family member. NPK title/Remarks caps wording is source-supported,but Description Includes 2 Nylon Bushing Only leaves actual complete package/counts unresolved. Neither statement is discarded or treated as proof the other is false. No cap quantity or exclusion of other pieces inferred. N has ten explicit Includes rows each qty2;NP,NPK,N-S empty component arrays establish neither inclusion nor exclusion and inherit no N BOM. N-S is a short kit and Use with460.542N9 Kit if Needed is a conditional source relation,not proof of included/excluded shim kit or equivalence to a full kit. Premium is a catalog distinction,not superior performance. N,NP and N-S own narratives mention non-sealed thrust/end caps where included;those statements remain source-specific and conditional,not NPK contents proof. No unprinted chemistry,load,OEM-form-fit or durability guarantee. 460.542NE is an Alternative Items card only in these captures. No own NE source/reaming/construction proof is adopted;no spiral/no-ream property transfers to these four articles. All prior source risks,stock/identity/package holds and claims remain unchanged. Exact supplied axle/kit configuration and service selection require review;no physical-package,installed-fit or publication approval. Owner full Title: 460.542N - King Pin Kit Bronze-Nylon Bushings Owner full Description: MACK with FXL12, FXL14.6, FXL18, FXL20 and FXL23M Axles, Volvo FM9, FM12 Tighten the King Pin Nut to 563–689 lbs./ft.NOTE: Bushings May Need to be Reamed Slightly Target full Title: 460.542N-S - King Pin Kit Nylon Bushing Target full Description: SHORT KIT OF 460.542N Use with 460.542N9 Kit if Needed |
|---|
Confirm the application, dimensions and installation requirements with our parts team before selecting a different configuration.
