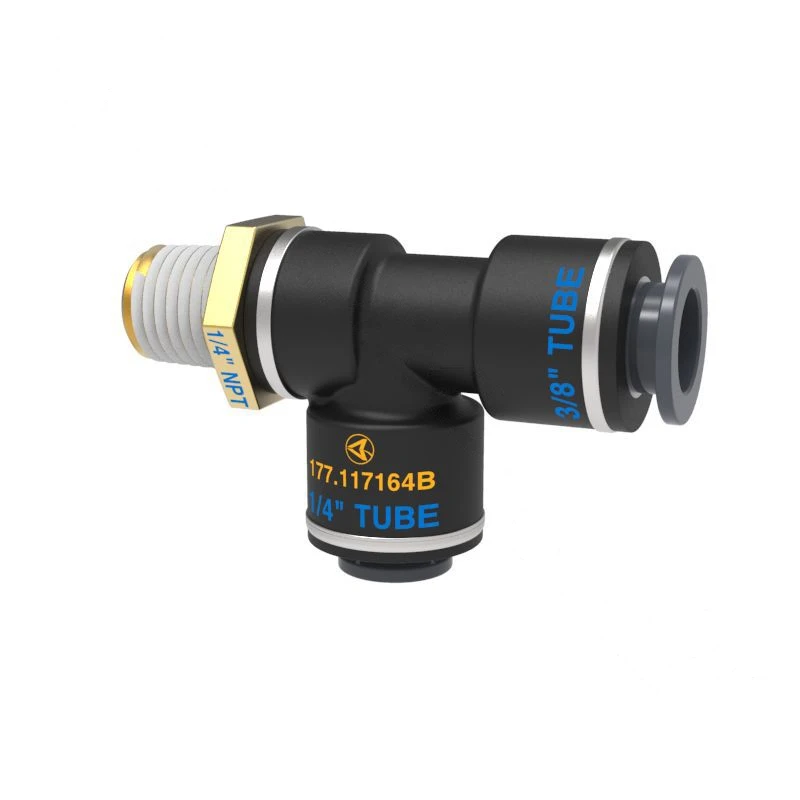

Universal DOT 3/8in and 1/4in Tube x 1/4in NPT Branch Fitting Automann - 177.117164B

Part number 177.117164B

Automann catalogs 177.117164B as a PLC male run tee with 3/8-inch and 1/4-inch tube ends and a 1/4-inch swivel NPT end. Its description states that the tube connections are perpendicular to each other; the distinct NPT end is not treated as a third tube socket.

Confirm the exact application and configuration before selecting this part. Reference numbers and similar configurations do not guarantee interchange.

Specifications

Part number / SKU	177.117164B
Brand	Automann
Department	Air Systems
Part type	Push-to-Connect Fittings
Product Level	Fleet Standard Conditions / details Own exact-product printed field
Applications	Universal Conditions / details Header application category; retain full source description constraints
Unit Size	1 Conditions / details Printed physical unit/package field
Weight	0.08 lbs Conditions / details Own exact-product printed field
Package dimensions	3 X 3 X 0.98 in Conditions / details Shipping package dimensions, not physical part dimensions
UPC Code	889626780196
Applications	Universal Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed Exact owning source description: 3/8in Tube End x 1/4in Tube End x 1/4in Swivel NPT End Tubes Connect Perpendicular to Each Other Replaces 177.11716AB; 177.1171R64B Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion.
Fitting Type	Push Lock Connect Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Connector Type	Male Run Tee Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Connection	Tube (2) to Male NPT Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Tube OD (A)	3/8" Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Tube OD (B)	1/4" Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Male NPT	1/4" Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Type of Pivoting	Rigid Swivel Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Tube Type (Used with)	Nylon Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Fitting Body Material	Composite Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Collet Material	Composite Conditions / details Own exact-product attribute; unit retained within literal value/label only as printed
Manufacturer description	3/8in Tube End x 1/4in Tube End x 1/4in Swivel NPT End Tubes Connect Perpendicular to Each Other Replaces 177.11716AB; 177.1171R64B Conditions / details Preserve all printed application, configuration and installation qualifiers

Need a measurement or technical specification? Ask our parts team before choosing the part.

Cross References

Conditions applying to every reference below
PLC Swivel Male R/Tee 3/8 X 1/4 X 1/4in
OEM names/numbers identify applications, not genuine OEM manufacture
Exact owning source description: 3/8in Tube End x 1/4in Tube End x 1/4in Swivel NPT End Tubes Connect Perpendicular to Each Other Replaces 177.11716AB; 177.1171R64B
Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion.
Brand / reference type	Part number	Notes
Parker	371PTC-6-4-4	manufacturer-listed cross reference. Shared conditions also apply
Parker	371PTC644	manufacturer-listed cross reference. Shared conditions also apply
Tectran	QL13716AB	manufacturer-listed cross reference. Shared conditions also apply

Reference numbers alone do not guarantee fit. Confirm the exact application.

Have another part number? Ask us to check it.

Detailed product and selection notes

Own exact-product attribute; unit retained within literal value/label only as printed

Preserve all printed application, configuration and installation qualifiers

Composite collet is literal, not changed to brass by analogy with12Cfamily. Run-tee tube ends are perpendicular, not opposite branch-tee geometry. Replaces list and duplicate related row are literal relationships, not two included products.

Related options, components and same-family products do not establish interchangeable/selectable variants without exact configuration and current target identity review.

Research evidence only; no public or human approval.

No source-backed fitment recorded yet; not proof that none exist.

No source-backed variants recorded yet; not proof that none exist.

Independent content review and explicit human approval remain required before public attachment.

Private source-bound description candidate only; independent prose review and explicit root registration required. Saved catalog assertions do not confirm current supplied stock, physical contents, installed fitment or public/human approval.

Part type: Push-to-Connect Fittings
Department: Air Systems
