Part number 177.11696B

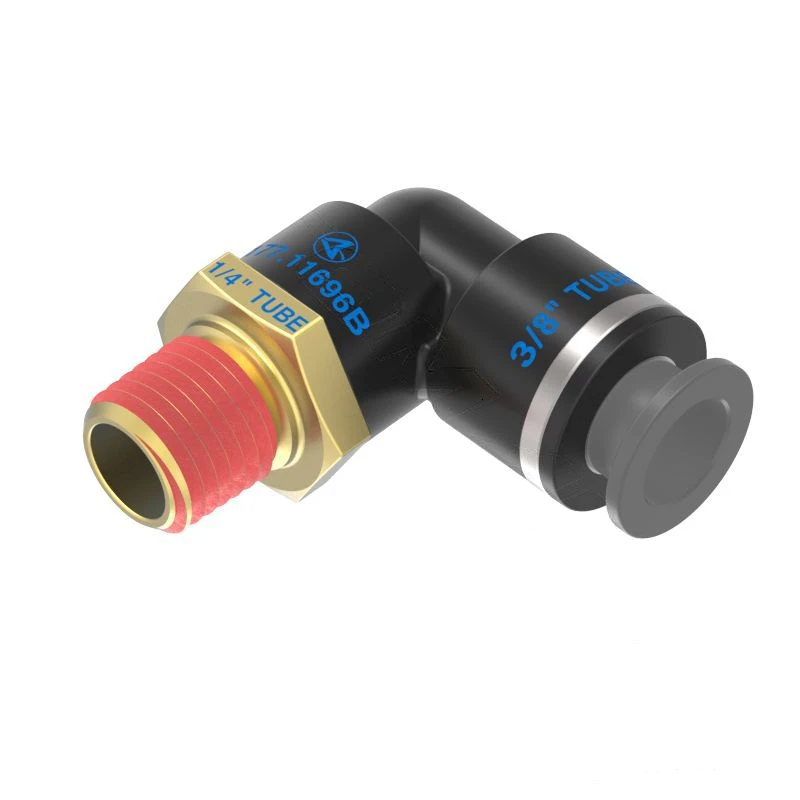

Automann catalogs 177.11696B as a PLC 90-degree male elbow connecting 3/8-inch tube outside diameter to 1/4-inch male NPT. Its pivoting field is Rigid Swivel, not unrestricted in-service rotation; this description makes no independent compliance or pressure-rating claim.
Confirm the exact application and configuration before selecting this part. Reference numbers and similar configurations do not guarantee interchange.
| Part number / SKU | 177.11696B |
|---|---|
| Brand | Automann |
| Department | Air Systems |
| Part type | Push-to-Connect Fittings |
| Applications | UniversalConditions / detailsHeader application category; retain full source description constraints |
| Unit Size | 1Conditions / detailsPrinted physical unit/package field |
| Weight | 0.06 lbsConditions / detailsOwn exact-product printed field |
| Package dimensions | 1.65 X 1.6 X 0.74 inConditions / detailsShipping package dimensions, not physical part dimensions |
| UPC Code | 889626036514 |
| Applications | UniversalConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Fitting Type | Push Lock ConnectConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Connector Type | Male Elbow 90 DegConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Connection | Tube to Male NPTConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Tube O.D. | 3/8"Conditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Male NPT | 1/4"Conditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Type of Pivoting | Rigid SwivelConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Tube Type (Used with) | Nylon (J844 Type B)Conditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Fitting Body Material | CompositeConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Collet Material | CompositeConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Fluid | AirConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| DOT Approved | YesConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Max Working Pressure | 145 PSIConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Min Operating Temp | -40 °FConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Max Operating Temp | 140 °FConditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Compliance | D.O.T. FMVSS 571.106; SAE J1131Conditions / detailsOwn exact-product attribute; unit retained within literal value/label only as printed |
| Manufacturer description | Push-Lock Connect (PLC) Fitting
Male Elbow 90 degree - Swivel
3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end
Composite Body and Collet Construction
Nylon Tube Compatible
DOT Approved for Heavy-Duty Air Brake SystemsConditions / detailsPreserve all printed application, configuration and installation qualifiers |
Need a measurement or technical specification? Ask our parts team before choosing the part.
| Brand / reference type | Part number | Notes |
|---|---|---|
| Kenworth | G3810210406 | manufacturer-listed cross reference. |
| Kenworth | TKVC06 | manufacturer-listed cross reference. |
| Parker | 369PTC64 | manufacturer-listed cross reference. |
| Sloan | S769PMT-6-4 | manufacturer-listed cross reference. |
| Tectran | QL1369-6B | manufacturer-listed cross reference. |
These source-qualified listings are not a fitment guarantee. Confirm the engine, OE number, installed equipment, mounting/configuration and VIN before selecting a part. Missing years or models have not been verified.
Shared wording applies within its original source scope. Each row retains its exact source conditions.
Source application categories/series do not establish all vehicle configurations.
No unstated engine/year expansion.
Series label is literal; No Year or Unspecified does not mean all years.
| Make | Model | Years |
|---|---|---|
| Volvo/White | VNL 670 Gen 1 Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Original source conditionsVolvo/White VNL 670 Gen 1 (1996) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 1 (1997) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 1 (1998) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. |
No verified documents are listed for this part yet. Saved research PDFs remain drafts and are not attached here.
Ask for product documentationAutomann catalogs 177.11696B as a PLC 90-degree male elbow connecting 3/8-inch tube outside diameter to 1/4-inch male NPT. Its pivoting field is Rigid Swivel, not unrestricted in-service rotation; this description makes no independent compliance or pressure-rating claim.
Own exact-product attribute; unit retained within literal value/label only as printed
Seven related lifecycle-only tubing rows excluded from technical claims.
Supplier DOT/compliance claims are source assertions, not independent certification verification.
Related options, components and same-family products do not establish interchangeable/selectable variants without exact configuration and current target identity review.
Research evidence only; no public or human approval.
Exact current Automann SKU absent from the inspected supplier table; source-not-found is limited to this checked catalog, not a worldwide no-cross conclusion.
Current inFlow cross/OEM fields remain unverified leads. No conversion of 177.12C or other current numbers to differently printed 177.11/177.13B numbers accepted.
No owning-Automann specifications, fitment, or same-application configuration variants established by this supplier-side search.
Independent source QA and explicit human approval remain required before any public attachment.
Versioned narrative/configuration captured-source context only; original fullauthor/sourceCapture/priorreviews unchanged.
No new owning cross/specification/fitment/configuration claims, source repair, implicit hold supersession, public/physical stock approval.
Exact narrative and labelledroles are not genericfamily-to-part fitment, counterpart property transfer or transitive interchange; empty fields are boundedcapture observations, not sourceabsenceproof.
3/8TubeOD versus1/4MaleNPT,90degreeRigidSwivel,compositebody/collet/nylonJ844TypeB,air145PSI/-40to140F distinct. NewOverviewbrasspipeend notwholebrassbodycontradiction. ComplianceFMVSS571.106/J1131 plusnewJ2494 1/3 retainedasattributedsupplierwords only, noindependentcertification. Alternative6/Related14/UsedIn2 separate. ProductGroups35rowcomparisonTubeOD+MaleNPT includesPhillips/Automann, notcross/interchange/compliance/material closure (includingPHI12-94052). ConditionaltubingUse-titles notcurrentinventory/unconditionalsupersession.
No source-backed variants recorded yet; not proof that none exist.
Independent content review and explicit human approval remain required before public attachment.
Online ordering is coming soon. Contact our team about this part; listings do not confirm stock.
Contact us to confirm current availability and shipping options for this part.
More Push-to-Connect Fittings
| Velvac | 016264 | manufacturer-listed cross reference. |
|---|
Reference numbers alone do not guarantee fit. Confirm the exact application.
Volvo/White VNL 670 Gen 1 (1999)
Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years.
Volvo/White VNL 670 Gen 1 (2000)
Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years.
Volvo/White VNL 670 Gen 1 (2001)
Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years.
Volvo/White VNL 670 Gen 1 (2002)
Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years.
Volvo/White VNL 670 Gen 1 (2003)
Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years.
| 1996-2003 |
| Volvo/White | VNL 670 Gen 2 Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Original source conditionsVolvo/White VNL 670 Gen 2 (2003) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2004) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2005) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2006) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2007) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2008) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2009) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2010) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2011) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2012) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2013) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2014) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2015) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2016) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2017) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2018) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. Volvo/White VNL 670 Gen 2 (2019) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. | 2003-2019 |
|---|
| Volvo/White | VNL 670 Gen 1 (1996-2003) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Original source conditionsVolvo/White VNL 670 Gen 1 (1996-2003) (No Year) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. | No Year |
|---|
| Volvo/White | VNL 670 Gen 2 (2003-2019) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Original source conditionsVolvo/White VNL 670 Gen 2 (2003-2019) (No Year) Exact owning source description: Push-Lock Connect (PLC) Fitting Male Elbow 90 degree - Swivel 3/8 in. tube end, 1/4 in. Rigid Swivel Male NPT thread end Composite Body and Collet Construction Nylon Tube Compatible DOT Approved for Heavy-Duty Air Brake Systems Source application categories/series do not establish all vehicle configurations. No unstated engine/year expansion. Series label is literal; No Year or Unspecified does not mean all years. | No Year |
|---|
Applications not listed here have not been verified.
